Leading Manufacturers, Exporters and Wholesaler of Electromagnetic Flow Meter, Magnetic Flow Meter, Turbine Flow Meter, Vortex Flow Meter, Open Channel Flow Meter, Ultrasonic Clamp On Flow Meter, Handheld Ultrasonic Flow Meter, Compressed Air Flow Meter, Digital Diesel Flow Meter, Mechanical Diesel Flow Meter, DG Consumption Flow Meter, Helical Flow Meter, Gas Flow Meter, Online Flow Meter, Digital Water Flow Meter, mechanical water flow meter and Hydraulic Flow Meter from Delhi.
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA |
Material | Aluminum |
Finishing | Powder Coated |
Driven Type | Electric |
Color | Grey Blue |
Pressure | Low Pressure, Medium Pressure, High Pressure |
Operating Type | Automatic |
Usage | Industrial,ETP |
Packaging Type | Carton Box |
Certificate | CE Certified |
Specialities | Digital Water Meter Display |
Type | Integral |
Country of Origin | India |
Display | Digital |
Warrenty | 1 Year |
Connection | DN 25 to 1000 mm |
Application Media | Water, Acid |
Flow range(Min-Max) | 4 kg/cm2 |
Flow Media | Conductive |
Liquid Temperature | 0 to 150 Degree C |
Environmental Temperature | -5 to 55 Degree C |
Product Code | LF-MF |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday’s law of electromagnetic induction – which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only. Early magmeter designs required a minimum fluidic conductivity of 1-5 microsiemens per centimeter for their operation. The newer designs have reduced that requirement a hundredfold to between 0.05 and 0.1.
An electromagnetic flowmeter consists of a non-magnetic pipe that is lined with an insulating material. A pair of magnetic coils is situated as shown in Figure 1, and a pair of electrodes penetrates the pipe and its lining.
If a conductive fluid flows through a pipe of diameter (D) through a magnetic field density (B) generated by the coils, the amount of voltage (E) developed across the electrodes--as predicted by Faraday's law--will be proportional to the velocity (V) of the liquid. Because the magnetic field density and the pipe diameter are fixed values, they can be combined into a calibration factor (K) and the equation reduces to:
E = KV
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA |
Material | Aluminum, Stainless Steel |
Driven Type | Electric |
Automatic Grade | Automatic |
Power Supply | 220 V AC, 50 Hz |
Application | Industrial |
Size | Multisizes |
Feature | Digital Water Meter Display |
Certificate | CE Certified |
Type | Magnetic Flow Meter |
Accuracy | 0.3% – 0.5% |
Country of Origin | India |
Output | 4-20 MA |
Warrenty | 1 Year |
LCD Display | 16 X 2 (Two Line) Backlit LCD |
Working Temp. | 0-180 deg. C as per model selection |
Protection | IP 65(IP – 68 on request) |
Liner | Rubber / PTFE |
Electrodes | SS 316L/ Hastelloy C /Ta / Ti |
Flow Tube | SS 316 |
Media Conductivity | 10uS/cm |
Technical Specification | ![]() |
Product Code | LF-MF |
Preferred Buyer From
Location | Anywhere in India |
A magnetic flow meter (mag meter, electromagnetic flow meter) is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.
If the magnetic field direction were constant, electrochemical and other effects at the electrodes would make the potential difference difficult to distinguish from the fluid flow induced potential difference. To show this in modern magnetic flowmeters, the magnetic field is constantly reversed, cancelling out the electrochemical potential difference, which does not change direction with the magnetic field. This however prevents the use of permanent magnets for magnetic flowmeters.
Application : Waste Water, Slurry, Raw Water, Sewage, Wood Pulp, chemicals, Food processing, fertilizer, sugar, beverages, pharmaceutical Industries.
Features :
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA |
Material | Stainless Steel |
Pressure | 10kg/cm2 Or 40kg/cm2 Max. |
Operating Temperature | 0 To 55 Deg C Or Upto 150 Deg.C Max. |
Certificate | CE Certified |
Accuracy | +1% |
Country of Origin | India |
Output | 4-20mA DC, Current Output |
Warrenty | 2 Years |
Corrosion Resistance | Yes |
Repeatability | 0=1% |
Media | Liquid / Gas |
Viscosity | 20 cp max. |
Flow Rate Display | 4 Digit LED |
Totalizer Display | 8 Digit LED |
Rotor | Stainless Steel |
Supply | 220 V AC / 24 V DC |
Technical Specification | ![]() |
Product Code | LF-TF |
Preferred Buyer From
Location | Anywhere in India |
A turbine flow meter is an instrument used to measure the flow rate and volume of a liquid or gaseous fluid. It works on the principle of turbine rotation. A turbine flow meter consists of a pipe or fluid channel with turbine blades inside, and as the fluid passes through the channel, the kinetic energy of the fluid pushes the turbine blades and causes them to rotate.
The measurement accuracy of a turbine flow meter usually depends on several factors, including the following:
Business Type | Manufacturer, Exporter, Supplier |
Size | Multisizes |
Type | Vortex Flow Meters |
Material | Stainless Steel |
Application | Industrial, Gases |
Color | Grey |
Feature | Digital Water Meter Display |
Operating Temperature | 0 to 300 deg C |
Automatic Grade | Automatic |
Driven Type | Electric |
Certificate | CE Certified |
Display | LCD |
Warrenty | 1 Year |
Country of Origin | India |
Brand Name | LFIA,LFIA |
Medium | DM water, Air, Steam, Gas |
Body Material | SS |
Item | Flow Meter |
Output | 4-20mA |
Temperature | 0 to 300 Deg C |
Power Supply | 24VDC |
Sensor | Vortex |
Pressure | 10 Bar |
Protection | IP65 |
Technical Specification | ![]() |
Product Code | LF-V |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
A vortex meter is a type of volumetric flow meter that makes use of a natural phenomenon that occurs when a liquid flows around a bluff object. Vortex flow meters operate under the vortex shedding principle, where vortices (or eddies) are shed alternately downstream of the object.
Application
Features
Business Type | Manufacturer, Exporter, Supplier |
Application Media | WATER |
Brand Name | LFIA,LFIA |
Material | SS/PP |
Finishing | Polished |
Driven Type | Electric |
Shape | Rectangular |
Color | Grey Blue |
Power | 220V AC |
Pressure | Medium Pressure, High Pressure |
Operating Type | Automatic |
Usage | Industrial |
Voltage | 220V |
Operating Temperature | 0-60 deg C |
Packaging Type | Carton Box |
Certificate | CE Certified |
Line Size | As per connection |
Specialities | Digital Water Meter Display |
Type | Open Channel Flow Meter |
Country of Origin | India |
Display | Digital |
Warrenty | 1 Year |
Analog Output | 4-20mA+4-way relay |
Range | 5, 8, 10, 15 Mtr. |
Temperature | 0-60 Deg C |
0-60 deg C | ABS |
Connection | Threaded |
Protection | P65 |
Output | 4-20mA+4-way relay |
Technical Specification | ![]() |
Product Code | LF-OP |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
Open Channel Flow Meter is a high accuracy flow instrument which is used the principle of ultrasonic measuring Venturi canal or Parshall flume. It measure the time of reflected back after sound wave contact to channel water , then according to the formula figure out channel flow, it can provide flow output, display flow velocity and total flow.
Application Area:
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA |
Material | Aluminum |
Finishing | Powder Coated |
Driven Type | Electric |
Color | Grey Blue |
Pressure | Low Pressure, Medium Pressure, High Pressure |
Operating Type | Automatic |
Usage | Industrial |
Certificate | CE Certified |
Frequency | 1 MHz |
Accuracy | + 1% Full Range |
Country of Origin | India |
Display | Digital |
Warrenty | 2 Years |
Range | 25-5000 mm |
Temperature | 0-80deg.C / High temp. model also available |
Response Time | 500 ms |
Flow Unit Display | M3 , litre |
Sensor Cable | 5m x 2 nos.1kg/cm2 |
Technical Specification | ![]() |
Product Code | LF-UF-C |
Preferred Buyer From
Location | Anywhere in India |
The TFX-500w transit time ultrasonic flow meter measures volumetric flow of clean water in pipes 10 in. or smaller. By clamping on the outside of the pipe, the ultrasonic meter installs without cutting or tapping the pipe.
APPLICATION
The TFX-500w meter is well suited for building automation, water distribution and wastewater collection in new and retrofit applications. In addition to having lower installation costs than an inline flow meter, the TFX-500w meter can be installed while the system continues to operate without interruption.
The TFX-500w meter is suitable for:
• Potable water
• Reclaimed water
• Chiller water
• Boiler feed water
• Make-up water
• Condenser water
• Condensate
OPERATION
Transit time flow meters use two transducers that function as both ultrasonic transmitters and receivers. The flow meters operate by alternately transmitting and receiving a frequency-modulated burst of sound energy between the two transducers. The burst is first transmitted in the direction of fluid flow and then against fluid flow. Since sound energy in a moving liquid is carried faster when it travels in the direction of fluid flow (downstream) than it does when it travels against fluid flow (upstream), a differential in the times of flight will occur. The sound’s time-of-flight is accurately measured in both directions and the difference in time-of-flight calculated.
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA |
Pressure | Medium Pressure, High Pressure |
Usage | Industrial |
Packaging Type | Carton Box |
Certificate | CE Certified |
Frequency | 1 MHz |
Accuracy | + 1% Full Range |
Country of Origin | India |
Display | Remote |
Warrenty | 1 Year |
Range | 25-100 mm / 50 – 700 mm / 300 – 5000 mm |
Temperature | 0-80deg.C / High temp. model also available |
Response Time | 500 ms |
Sensor Cable | 5m x 2 nos. |
Display Unit | Handheld LCD display(Flow rate & totalizer) |
Sensors | Ultrasonic Clamp On – 2 nos |
Protection | IP65 |
Flow Unit Display | M3 , litre |
Output | 4-20mA |
Supply | 3 AAA battery |
Technical Specification | ![]() |
Product Code | LF-UF-P |
Preferred Buyer From
Location | Anywhere in India |
Handled Ultrasonic Flow Meter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a distance from each other. The transducers can be mounted in V method in which case the ultrasound transverses the pipe twice, or W method in which case the ultrasound transverses the pipe four times, or in Z method in which case the transducer are mounted on opposite sides of the pipe and the ultrasound transverses the pipe only once. The selection of mounting method depends on pipe and liquid characteristics. When flow meter works, two transducers transmit and receive the ultrasonic signal which travels firstly downstream and then travels upstream. Because ultra sound travels faster downstream than upstream, there will be a difference of time of flight (delta t). When the flow is still, the time difference (delta t) is zero. Therefore, as long as we know the time of flight both downstream and upstream, we can work out the time difference and the flow velocity (V) and flow v (Q) the follow-ing formula.
Application:
Advantages:
Disadvantages:
Business Type | Manufacturer, Exporter, Supplier |
Flow Range | 0-500 m3/hr |
Brand | LFIA,LFIA |
Model Name | LF - OF |
Country of Origin | India |
Display | Digital |
Frequency | 50 Hz |
Phase | Single |
Color | Yellow |
Current | 4-20 mA |
IP Range | IP65 |
Technical Specification | ![]() |
Product Code | LF-OF |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
Compressed Air Flow Meters generally uses more electricity than any other type of equipment, and accounts for as much as a third of the energy usage in an industrial facility. Achievers Air Flow Meters help identify leaks in compressor systems, track overall usage to improve plant efficiency, and help departments reduce consumption. This can save huge money each month in large industrial applications. For instance, the compressed air flow meter can be used with energy management systems to help determine the optimal number of compressor units that need to be in operation at any given time, this helps to meet the demand of various departments and processes. Furthermore, Compressed air flow meters are sensitive enough to determine leaks.
Features of Compressed Air Flow Meter:
Business Type | Manufacturer, Exporter, Supplier |
Country of Origin | India |
Model Number | LF-DF-D-25 |
Brand Name | LFIA |
Finishing | Powder Coated |
Usage | Industrial |
Packaging Type | Carton Box |
Certificate | CE Certified |
Line Size | 25-50 Mm |
Accuracy | +0.5% |
Display | With Push Button Reset |
Min. Flow rate | 12-30 L/m |
Max. Flow rate | 120-300 L/m |
Body MOC | Aluminium |
Max. Viscosity | 1000 CPS |
Max. Pressure | 3.4 Mpa |
Supply | Batter Operated |
Connection | Threaded |
Technical Specification | ![]() |
Product Code | LF-DF-D |
Port | BY-COURIER/ TRANSPORT |
Payment Terms | Other |
Delivery Time | 1-2 DAYS |
Preferred Buyer From
Location | Anywhere in India |

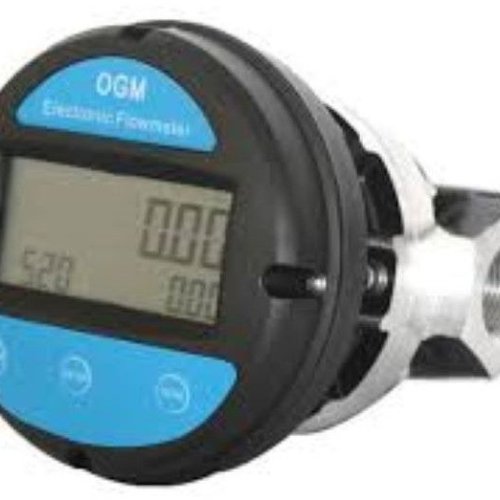

Digital Diesel Flow Meter are used for flow measurement of low, medium viscosity fluids such as diesel, fuel, lubricant oil and other special fluids compatible with the constructions materi-al. Electronic card with microprocessor enables accurate LCD dis-play and working calibration of the flow meter.
Oval gear flow meters are a type of positive displacement meter. As liquid through the meter, pair of oval shaped gears is forced to rotate by the flow of the liquid. These gears mesh together & force a finite amount of liquid through the meter. A sensor or mechanical drive detects the rotation of the gears to determine the displaced volume of liquid. The faster the flow rate, the faster the gear turns.
The Oval fear flow meter comprises oval - shaped, geared rotors which rotate within a housing of specified geometry. Fluid differential pressure causes the inter-meshing gears to rotate, trapping a `pocket' of fluid between the gear and the outer housing and subsequently emp-tying the fluid pocket into the downstream flow. Capillary action of the metered fluid forms a liquid seal.
Each pocket holds a precise and known volume of fluid so counting the pocket frequency gives a measurement of the volumetric flow rate. This is typically achieved by embed-ding magnets in the rotors, which then actu-ate a reed switch or provide a pulse output as they rotate and thus flow is measured electronically.
Feaures:
Application:
Digital Diesel Flow Meter are used for flow measurement of low, medium viscosity fluids such as diesel, fuel, lubricant oil and other special fluids compatible with the constructions materi-al. Electronic card with microprocessor enables accurate LCD dis-play and working calibration of the flow meter.
Oval gear flow meters are a type of positive displacement meter. As liquid through the meter, pair of oval shaped gears is forced to rotate by the flow of the liquid. These gears mesh together & force a finite amount of liquid through the meter. A sensor or mechanical drive detects the rotation of the gears to determine the displaced volume of liquid. The faster the flow rate, the faster the gear turns.
The Oval fear flow meter comprises oval - shaped, geared rotors which rotate within a housing of specified geometry. Fluid differential pressure causes the inter-meshing gears to rotate, trapping a `pocket' of fluid between the gear and the outer housing and subsequently emp-tying the fluid pocket into the downstream flow. Capillary action of the metered fluid forms a liquid seal.
Each pocket holds a precise and known volume of fluid so counting the pocket frequency gives a measurement of the volumetric flow rate. This is typically achieved by embed-ding magnets in the rotors, which then actu-ate a reed switch or provide a pulse output as they rotate and thus flow is measured electronically.
Feaures:
Application:
Business Type | Manufacturer, Exporter, Supplier |
Model Number | LF-DF-M |
Brand Name | LFIA |
Usage | Industrial |
Certificate | CE Certified |
Line Size | 25-50 Mm |
Accuracy | +0.5% |
Country of Origin | India |
Min. Flow rate | 12- 30 L/m |
Max. Flow rate | 120- 300 L/m |
Body MOC | Aluminium |
Max. Viscosity | 1000 CPS |
Max. Pressure | 3.4 Mpa |
Technical Specification | ![]() |
Product Code | LF-DF-M |
Preferred Buyer From
Location | Anywhere in India |
Mechanical Diesel Flow Meter are used for flow measurement of low, medium viscosity fluids such as diesel, fuel, lubricant oil and other special fluids compatible with the constructions material.
Oval gear flow meters are a type of positive displacement meter. As liquid through the meter, pair of oval shaped gears is forced to rotate by the flow of the liquid. These gears mesh together & force a finite amount of liquid through the meter. A sensor or mechanical drive detects the rotation of the gears to determine the displaced volume of liquid. The faster the flow rate, the faster the gear turns.
The Oval fear flow meter comprises oval - shaped, geared rotors which rotate within a housing of specified geometry. Fluid differential pressure causes the inter-meshing gears to rotate, trapping a ''pocket'' of fluid between the gear and the outer housing and subsequently emp-tying the fluid pocket into the downstream flow. Capillary action of the metered fluid forms a liquid seal. Each pocket holds a precise and known volume of fluid so counting the pocket frequency gives a mea-surement of the volumetric flow rate. This is typically achieved by embedding magnets in the rotors, which then actuate a reed switch or provide a pulse output as they rotate and thus flow is measured elec-tronically.
Business Type | Manufacturer, Exporter, Supplier |
Application | Industrial, DG Set |
Brand Name | LFIA,LFIA |
Material | Stainless Steel |
Finishing | Chrome Finish |
Driven Type | Electric |
Color | Black |
Pressure | Medium Pressure, High Pressure |
Operating Type | Automatic |
Voltage | 220V |
Operating Temperature | -40℃~+200℃ |
Packaging Type | Carton Box |
Certificate | CE Certified |
Line Size | As per connection |
Type | DG Consumption Meter |
Frequency | 50 Hz |
Accuracy | 1.0 % |
Country of Origin | India |
Display | Remote |
Warrenty | 1 Year |
Application Media | Diesel |
Power Supply | 220V Ac |
Diplay | Digital |
Warranty | 1 Year |
Technical Specification | ![]() |
Product Code | LF-F Fuel |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
Diesel generators are usually equipped with a flat tank, which makes fuel control using level sensors problematic and less accurate. At the same time, fuel monitoring with flow meter provides accurate data on instant, total and differential fuel consumption, and also allows calculating level in a tank and ensures timely refueling.
flowmeters monitor engine operation time in Idling, Optimal, Overload modes and allow accurate accounting of engine hours.
Reporting on fuel consumption and engine operating conditions helps to identify need for replacement of consumables in a timely manner, which optimizes and reduces repair and maintenance costs.
Business Type | Manufacturer, Exporter, Supplier |
Application | Industrial |
Brand Name | LFIA |
Finishing | Polished |
Driven Type | Electric |
Color | Red |
Pressure | Medium Pressure, High Pressure |
Operating Type | Automatic |
Certificate | CE Certified |
Country of Origin | India |
Repeatability | 0.05% |
Enclosure | PA66 |
Rotor | PA66 |
Accuracy (standard installation position) | +/-0.5 or 1% FSD |
Maximum Working Pressure | 2.5 MPa |
Fluid & Ambient Temperature | -40 to 120 Deg. C |
Preferred Buyer From
Location | Anywhere in India |
LFIA developed and produced Digital Water Flow Meter specially for Liquid dispensing industries, water dispensing industries use plastic turbines flow meter its k factor change with flow rate so for solution we developer helical rotor plastic flow meter with same pulse k factor for full range also provide very good accuracy and repeatability in full range of measurement, Helical flow meters are positive displacement meters with very fa-vourable low pressure drop behaviour, therefore perfectly suited for the flow measurement of very high viscosity fluids. Due to which measuring range, high accuracy and resolution he-lical flow meters are an excellent choice for adhesive dispense systems, as well as batching systems for various fluids.Features
High Accuracy, Pressure up to 25 bar, compared with other positive displacement meters, High resolution, Resistant to corrosion by advanced materials and bearings
Application
Light and heavy fuel oil,Petrochemical products,Fat and oils with varying viscosities and fluids,Water / glycol mixtures,Water dispensing, tea /coffee/juice and other food liquid measurement
Business Type | Manufacturer, Exporter, Supplier |
Display | Digital |
Country of Origin | India |
Type | Gas Flow Meter |
Specialities | Gas Flow Meter |
Certificate | CE Certified |
Operating Temperature | 2 Kg/cm2 |
Operating Type | Automatic |
Pressure | Medium Pressure, High Pressure |
Driven Type | Electric |
Finishing | Powder Coated |
Material | Stainless Steel,SS |
Brand Name | LFIA |
Application | GAS |
Application Media | Gas |
Gas Type | Natural |
Power Supply | 220V AC |
Product Code | LF-VF |
Port | BY COURIER / TRANSPORT |
Payment Terms | Other |
Delivery Time | 1 week |
Preferred Buyer From
Location | Anywhere in India |
A flow meter is a precision instrument that measures a pipe's gas flow rate (or liquid flow). While there are four main meter styles for flow measurement, here are three characteristics to determine flow: Positive displacement meters collect a fixed fluid volume, then release and refill the gas or liquid
Features
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA,LFIA |
Material | Stainless Steel |
Finishing | Powder Coated |
Driven Type | Electric |
Color | BLUE |
Pressure | Low Pressure, Medium Pressure, High Pressure |
Operating Type | Automatic |
Usage | Industrial |
Size | as per requirement |
Operating Temperature | 0 to 150 Degree C |
Packaging Type | Carton Box |
Certificate | CE Certified |
Specialities | Digital Water Meter Display |
Type | Magnetic Flow Meter |
Frequency | 0 To 1000 Hz |
Accuracy | +/-1% From 5 To 100% |
Country of Origin | India |
Display | Digital |
Warrenty | 1 Year |
Corrosion Resistance | Yes |
Environmental Temperature | -5 to 55 Degree C |
Liquid Temperature | 0 to 1500 Degree C |
Protection | IP67 |
Minimum Conductivity | 10 uS |
Product Code | LF-MF |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
Electromagnetic flow meters (also called mag meters, electromag meters or magnetic flow meters), are volumetric flow meters that use electromagnetic induction to measure liquid velocity. This method of measurement is highly accurate at measuring water-based fluids as they pass through a pipe.
Electromagnetic flow meters feature an obstruction-free design which eliminates flow impediment and operate with electrodes embedded on opposite sides of the flow tube or sensor to pick up the signal. Mag meters perform extremely well in many municipal and processing applications and have become the meter of choice for measuring conductive liquids such as water or slurry.
Finally, mag meters do not have any moving parts, so there is minimal need for maintenance or replacement. Accuracy over a wide flow range can be as good as ± 0.5% of flow rate or better.
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA,LFIA |
Material | Plastic |
Driven Type | Electric |
Color | Red |
Pressure | Low Pressure, Medium Pressure, High Pressure |
Operating Type | Automatic |
Usage | Industrial |
Operating Temperature | -40 to 120 deg C |
Packaging Type | Carton Box |
Certificate | CE Certified |
Line Size | 100-150mm |
Specialities | Digital Water Meter Display |
Type | Digital Flow Meter |
Accuracy | +-0.5 Or 1% FSD |
Display | Digital |
Warrenty | 1 Year |
Analog Output | 4-20mA |
Repeatability | 0.05% |
Application Media | Water |
Enclosure | PA66 |
Connection | Threaded |
Maximum Working Pressure | 2.5 MPa |
Fluid and Ambient Temperature | -40 to 120 deg C |
Technical Specification | ![]() |
Product Code | LF-DW |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
LFIA developed and produced Digital Water Flow Meter specially for Liquid dispensing industries, water dispensing industries use plastic turbines flow meter its k factor change with flow rate so for solution we developer helical rotor plastic flow meter with same pulse k factor for full range also provide very good accuracy and repeatability in full range of measurement, Helical flow meters are positive displacement meters with very fa-vourable low pressure drop behaviour, therefore perfectly suited for the flow measurement of very high viscosity fluids. Due to which measuring range, high accuracy and resolution he-lical flow meters are an excellent choice for adhesive dispense systems, as well as batching systems for various fluids.
Features:
Business Type | Manufacturer, Exporter, Supplier |
Country of Origin | India,MADE IN INDIA |
Material | Cast Iron |
Brand Name | LFIA |
Application | Industrial |
Meter Type | Mechanical |
Finish | Analog |
Type | Mechanical |
Size | Standard |
Color | Blue |
Reading | Rotary |
Warranty | 1 Year |
Product Code | MWLC |
Port | BY-COURIER/ TRANSPORT |
Payment Terms | Other |
Delivery Time | 1 week |
Preferred Buyer From
Location | Anywhere in India |
A mechanical flow meter is a precise instrument designed to measure the total flow of a liquid. It utilizes mechanical components, like gears, rotors, impellers, or turbines, which move in response to the fluid flowing through themWoltman type water meter.
. Removable element structure.
. easy installation & maintenance.
. flange standard can be choose.
Business Type | Manufacturer, Exporter, Supplier |
Brand Name | LFIA,LFIA,LFIA |
Material | Stainless Steel,SS |
Driven Type | Electric |
Color | Brown, Green, Grey, Maroon, Red, White, Yellow |
Automatic Grade | Automatic |
Power Supply | 24vdc |
Application | Industrial, Residential |
Size | Multisizes |
Feature | Accuracy, Digital Water Meter Display, Lorawan Compatible |
Voltage | 110V, 220V, 230V, 380V |
Operating Temperature | 10-50D/C, 50-100D/C |
Certificate | CE Certified, ISO 9001:2008 |
Type | Oval Gear Flow Meter,Magnetic,LCD |
Accuracy | 2 – 5% of full scale. |
Country of Origin | India,Made In India |
Display | Remote |
Flow Rate | as per line size |
Warrenty | 1 Year |
Warranty | 1 YEAR |
Technical Specification | ![]() |
Product Code | m5/6/9 |
Payment Terms | Other |
Preferred Buyer From
Location | Anywhere in India |
A flow meter is a method of measuring the volume of a liquid as it passes a fixed point on a pipe or tube. Measurements are taken in liters per minute or gallons per minute. They measure linear, nonlinear, mass, or volume of a liquid’s flow rate. The key factors that hydraulic engineers watch are flow and pressure to get an accurate and precise measurement of a system. The main function of a hydraulic flow meter is to determine the efficiency and accuracy of the systems operation and performance.
The term hydraulic flow meter is a generic method for describing a hydraulic flow measuring device. Since hydraulic fluids come in different viscosities and with different flow rates, hydraulic flow meters are adjusted and produced to fit the conditions of the type of fluid they are measuring. A hydraulic flow meter can be positioned in any part of a hydraulic line to identify the flow rate. Since not every hydraulic system is the same, there are flow meters with varying port sizes to fit different systems. The meter itself has three main parts, which are the device, a transducer, and transmitter.
The transducer on a hydraulic flow meter measures the velocity of the liquid. They can calculate the flow level or the amount of flow. The transducer senses the passage of the flow through the measuring device and sends a signal to the transmitter. The volume of the flow is proportional to the cross sectional area and the fluid velocity with the mass flow being proportional to the density and volume of the fluid. The data from the calculations appears on the hydraulic flow meter gauge.
Hi! Simply click below and type your query.
Our experts will reply you very soon.
