Magnetic Level Gauge

Link Copied
25,000.00 - 35,000.00 / Piece
Business Type Manufacturer, Exporter, Supplier
Size 6inch, 8inch
Type Gauges
Material Mild Steel, Stainless Steel
Click to view more

Product Details

Diameter
40-60mm, 60-80mm, 80-100mm
Certification
ISI Certified
Application
Liquid Pressure
Color
Black, Silver
Feature
Measure Fast Reading
Display Type
Analog
Connection
Bottom Connection
Gas Pressure
10 BAR
Country of Origin
India
Output
Optional ( 4-20mA)
Operating Temperature
50 Deg. C
Length
3 Meter
SS Grade
304 and 316
Temperature
150 Degree C
Brand
LFIA

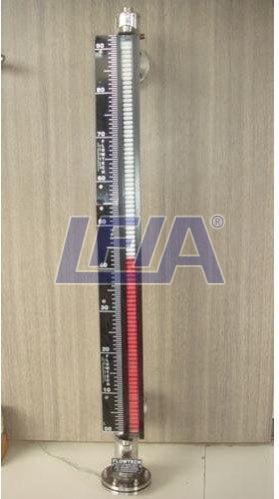

Magnetic Bi-Colour Level Gauge float moves with level in external chamber (cage) which is coupled with the tank. Indication display mechanism does not come in direct con-tact with the liquid media. Special designed cylindrical magnetic float as per density of liquid. Magnetically cou-pled follower capsule or roller or ball indicates the liquid level externally. Indicator system is consists of bi-colour rollers equipped with magnets mounted on rail inside the housing. As the level starts rising or falling magnetic float also travels with liquid level in non-magnetic chamber. The magnetic in-teraction between magnets in float and Ed-colour rollers causes each roller to rotate 180o. These red / white rollers are visible from long distance, giving a good visual indi-cation visibility. Models are available with side & top mounting designs.
