Level Gauges
Leading Manufacturers, Exporters, Wholesaler, Trader and Distributor of Glass Tubular Level Gauge, Magnetic Bi- Colour Level Gauge and Transparent Level Gauge Glass from Delhi.
| Business Type | Manufacturer, Exporter, Supplier |
| Technical Specification |  View |
| Brand Name | LFIA |
| Material | Glass, Toughened Glass |
| Color | Grey, Silver |
| Condition | New |
| Automatic Grade | Manual |
| Pressure | 10 Kg / Cm2 |
| Certification | ISI Certified |
| Feature | Measure Fast Reading |
| Display Type | Analog |
| Type | Glass Level Gauge |
| Country of Origin | India |
| MOCx | CS / SS / PP |
| C – C Distance | 0.4 – 2 mtr / Other |
| Tube | Borosilicate / PP |
| Glass Protector | M.S. C-Cut Frame |
| Process Temperature | Amb. |
| Process Connection | Flanged / Threaded |
| Valves | Integral Isolation Valve |
| Product Code | LFG1 |
Preferred Buyer From
| Location | Anywhere in India |

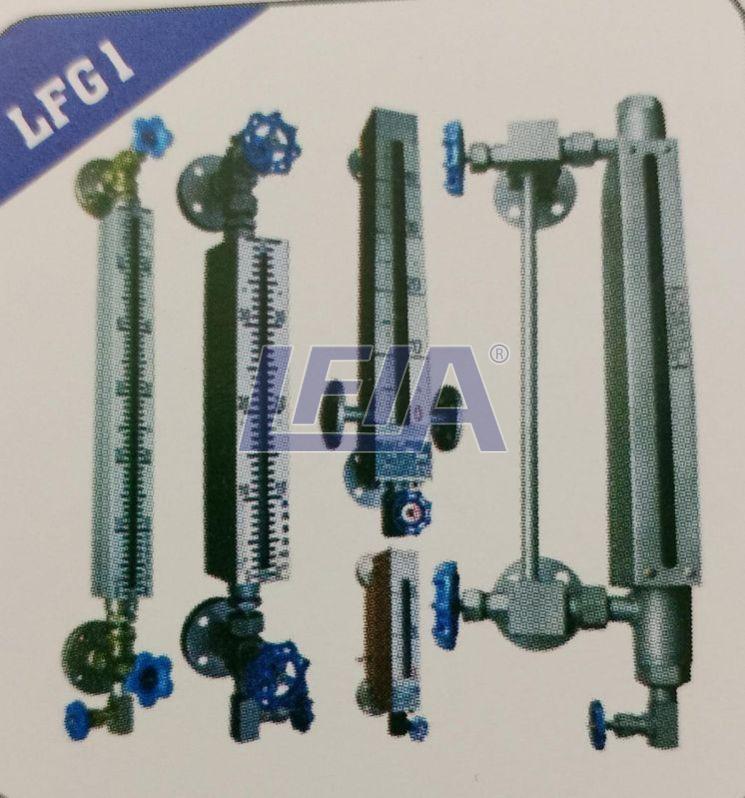

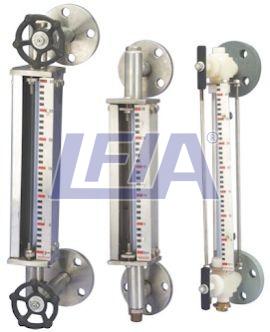

Tubular Level Gauges are designed to view liquid levels using clear or red line Borosilicate (Pyrex) tubing to view liquid levels. All valves use a stuffing box configuration to seal the glass tube, and have a ball check shutoff to prevent loss of vessel contents in case of glass failure.
Application : Liquid,, Diesel, Oil, Condensate , Chemicals, Beverages, acids, etc.
Features
- Continuous level indication without power supply
- Compare to Reflex & Transparent type Level Gauge, this Tubular Level Indicator is light in weight.
- Economical
- Made in various MOC.
| Business Type | Manufacturer, Exporter, Supplier |
| Technical Specification | View |
| Brand Name | LFIA |
| Material | Mild Steel, Stainless Steel |
| Scale Material | PP/SS |
| Color | Grey, Silver |
| Power Supply | 24V DC |
| Shape | Rectangular |
| Pressure | 10 BAR |
| Application | Industrial |
| Certification | ISI Certified |
| Connection | Bottom Connection |
| Display Type | Analog |
| Type | Level Gauges,Magnetic |
| Output | 4-20 mA,2 wire |
| Country of Origin | India |
| Temp | 100 Degree C |
| Measuring Range | upto 6 metre |
| MOC | CS / SS / PP |
| Mounted | Side / Top |
| C – C Distance(Measuring Range) | Upto 3 mtr |
| Chamber MOC | SS / PP |
| Indicator | Red & White Bi- Colour Magnetic Roller Flapper Strip |
| Float MOC | SS 304 / SS316 / PP |
| Operating Pressure | 15 bar / 60 bar |
| Process Connection | Flanged |
| Drain Valves | SS / PP |
| Product Code | LFMBC |
Preferred Buyer From
| Location | Anywhere in India |

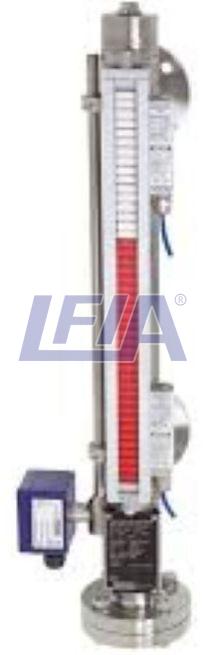

Magnetic Bi-Colour Level Gauge float moves with level in external chamber (cage) which is coupled with the tank. Indication display mechanism does not come in direct con-tact with the liquid media. Special designed cylindrical magnetic float as per density of liquid. Magnetically cou-pled follower capsule or roller or ball indicates the liquid level externally. Indicator system is consists of bi-colour rollers equipped with magnets mounted on rail inside the housing. As the level starts rising or falling magnetic float also travels with liquid level in non-magnetic chamber. The magnetic in-teraction between magnets in float and Ed-colour rollers causes each roller to rotate 180o. These red / white rollers are visible from long distance, giving a good visual indi-cation visibility. Models are available with side & top mounting designs.
Level transmitter (Optiona): Transmitter units are available with 4 - 20 mA output. Transmitter rod is clamped outside the chamber.
Level Switch: Level switches are available for con-trolling & alarm. Level switches are adjustable, mounted outside the chamber by adjustable clamp arrangementApplication : Liquid, Acids, machines, food, Diesel, Oil, Condensate, Chemicals, Beverages, etc.
Features
- Visible level changes are shown by the flag display.
- Compact & easy to install.
- Rugged, Life long, good visibility.
- Optional – Level switches for alarm or controlling.
- Optional – Level transmitters with 4 – 20 mA signal output.
- SS304, SS 316 & PP version for acid applications.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | LFIA |
| Material | Glass, Stainless Steel,stainless Steal |
| Color | Black,Silver |
| Size | Standard |
| Type | Glass Level Gauge |
| Country of Origin | India |
| Measuring Range | 1 To 30 Meter |
| Operating Pressure | 10 Kg/cm2 |
| Country of Origini | india |
| Product Code | LFG I |
| Port | BY COURIER / TRANSPORT |
| Payment Terms | Other |
| Delivery Time | 1 week |
Preferred Buyer From
| Location | Anywhere in India |
The level gauge, or sightglass is to liquid level measurement as manometers are to pressure measurement: a very simple and effective technology for direct visual indication of process level. In its simplest form, a level gauge is nothing more than a clear tube through which process liquid may be seen.
A tubular level gauge is a simple, reliable, and cost-effective instrument that measures the level of a liquid in a tank or vessel. It's used in low to medium pressure applications and is mounted on the side of the tank
