35,000.00 - 5 Lac / Piece

1 piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Brand Name LFIA
Material Stainless Steel
Pressure 10kg/cm2 Or 40kg/cm2 Max.
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Operating Temperature
0 To 55 Deg C Or Upto 150 Deg.C Max.
Certificate
CE Certified
Accuracy
+1%
Country of Origin
India
Output
4-20mA DC, Current Output
Warrenty
2 Years
Corrosion Resistance
Yes
Repeatability
0=1%
Media
Liquid / Gas
Viscosity
20 cp max.
Flow Rate Display
4 Digit LED
Totalizer Display
8 Digit LED
Rotor
Stainless Steel
Supply
220 V AC / 24 V DC
Technical Specification
Product Code
LF-TF

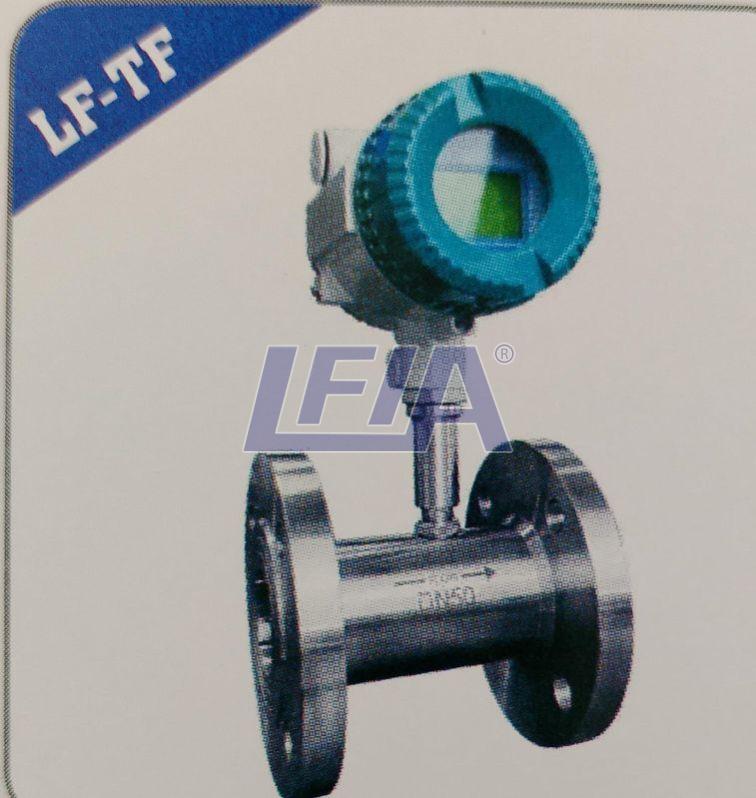

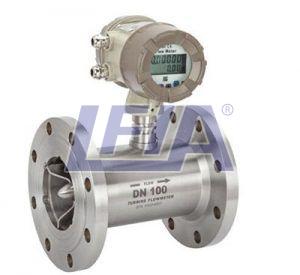

A turbine flow meter is an instrument used to measure the flow rate and volume of a liquid or gaseous fluid. It works on the principle of turbine rotation. A turbine flow meter consists of a pipe or fluid channel with turbine blades inside, and as the fluid passes through the channel, the kinetic energy of the fluid pushes the turbine blades and causes them to rotate.

The measurement accuracy of a turbine flow meter usually depends on several factors, including the following:

  • Sensor accuracy: The accuracy of the sensor’s detection of the turbine blade rotation will directly affect the accuracy of the flow rate and flow measurement.
  • Fluid Characteristics: Turbine flow meters are sensitive to the nature of the fluid (e.g., viscosity, temperature, and density), so corrections or compensations may be required under specific fluid conditions.
  • Cleanliness: The presence of solid particles or impurities in the fluid may affect the rotation of the turbine blades, thereby affecting measurement accuracy.
  • Installation and calibration: Proper installation and regular calibration are key factors in ensuring the accuracy of a turbine flow meter.
